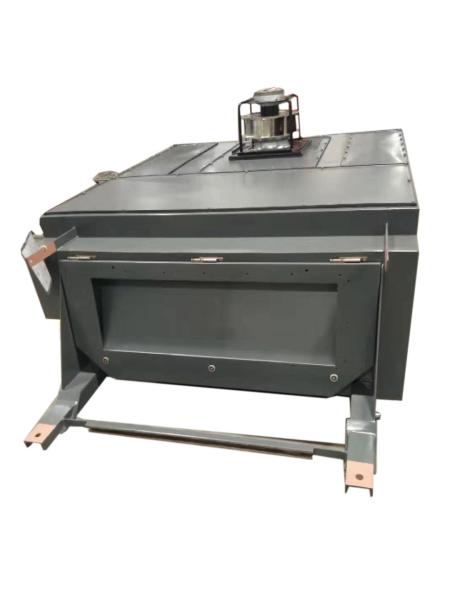

Wind Power Spare Parts Housing of Electronic Control Box Stainless Steel Sheet Metal Bending Parts

Redrawing Operation

1. Material Assessment: Select sheet metal materials suitable for redrawing, typically involving thicker and more rigid metals like steel.
2. Redrawing Die Design: Design a redrawing die that accommodates the original sheet metal blank and reshapes it to the desired deeper form.
3. Sheet Material Preparation: Prepare the sheet metal blank by initially forming it into a shallower shape, often through a preliminary drawing process.
4. Redrawing Process: Place the partially formed sheet metal blank into the redrawing die, which applies force to further draw and shape the metal into the desired deeper form.
5. Quality Verification: Inspect the redrawn part for dimensional accuracy, shape conformity, and any signs of defects, ensuring it aligns with the project's specifications.

Production description:

Material Available:

- Steel Plates: Q235, Q345, 08, 08F, 10, 10F, 08A1, SPCC, SPCD, SPCE, st12, st13, st14, st15, st14-T, CT-3kП,08kП,08ПC, SPHC, SPHD, SPHE,

- Other Steel Plates: Zinc Plating Steel Plate, SECC, SGCC, Stainless Steel plate, Aluminum plate.DX51 DX53

- Stainless Steel: SUS304, SUS316, SUS316L, etc.

- Aluminum alloy:6063 5083 5052 6061,etc

Application

• Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
• Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.

Standards

• UL 508A Type 3R, 4, 12 and 13
• CSA Type 3R, 4, 12 and 13
• Complies with
  • NEMA Type 3R, 4, and 12
  • IEC 60529, IP66

Construction

• Body formed from 16 or 14 gauge steel. Covers are formed from 14 gauge steel.
• Smooth, continuously welded seams without knockouts, cutouts or holes.
• Welded brackets provide for enclosure mounting.
• Lift off cover is secured with stainless steel clamps and screws.
• Seamless poured-in place gasket.
• All models larger than 4" x 4" include a removable 14 gauge inner panel.
• Internal threaded weld studs are provided for mounting inner panels.
• A bonding stud is provided on the door and a grounding stud is provided on the enclosure.

Finish

• Cover and enclosure are phosphatized, finished in recoatable smooth ANSI 61 gray powder coating.
• Removable inner panel is finished in white powder coating.

Qingdao Chenyang Machinery MFG Co., Ltd. was established in May 2007, is a set of sheet metal, machining, die casting, spraying and injection molding integrated production of high-tech enterprises. The headquarters of the company is located in Yunshui 2nd Road of the Automobile Industry New Town, with a construction area of 45,000 square meters, and the branch plant is located in Qingdao Environmental Protection Industrial Park, with a construction area of 12,000 square meters. The company has more than 200 employees, including 45 management personnel and 27 middle and senior technical R&D personnel. The company consists of sheet metal, CNC processing department, die casting, injection molding four industries, including sheet metal laser, bending, welding, riveting, powder coating, painting, assembly and other departments.
